MXPC Computer Cabinet Series

Description:

Material	Cold-rollsteelsheet and aluminum alloy section	Standard configuration	Cabinet body, back door plate, front upper glass door, front lower steel door,keyboard drawer,sealing strips, laminated plate, door lock and casters (optional)
Surface treatment	Cabinetis applied with etch primer and covered with powder coating on the outer side.and its color is RAL7035.The color of decoration stripsis RAL5018.Two textures are available.The coloroflaminated plate is identical with that of cabinet body	Plate thickness	Decoration strip:aluminum alloy Door plate:2.0mm aminated plate:2.0mm Frame: nine-fold section 1.5mm


Draw-out mouse pad	Keyboard drawer	Laminated plate

Features of products:

*Main body in RAL7035 fitted with decoration strips in RAL5018 presents high-end quality of cabinet body

*Surveillance area is equipped with non-reflect safety glass to ensure safety and reliability

*Frame made of nine-fold section ensures flexibi lity and convenience of internal installation

*The front lower door is arranged with a luxury handle lock and the access door arranged with a standard flat lock, reasonably embodying humanized design of cabinet body.

*Humanized design of keyboard and mouse system reveals high quality of cabinet body

MXPC series order specifcation table:

No.	Order No.(RAL7032)	Order No.(RAL7035)	Width	Height	Depth
1	7660.002	7660.005	600	1600	600
2	7680.002	7680.005	600	1600	800
3	7665.002	7665.005	600	1600	650
4	7685.002	7685.005	600	1600	850
5	7860.002	7860.005	600	1800	600
6	7880.002	7880.005	600	1800	800
7	7865.002	7865.005	600	1800	650
8	7885.002	7865.005	600	1800	850
9	7060.002	7060.005	600	2000	600
10	7080.002	7080.005	600	2000	800
11	7065.002	7065.005	600	2000	650
12	7085.002	7085.005	600	2000	850

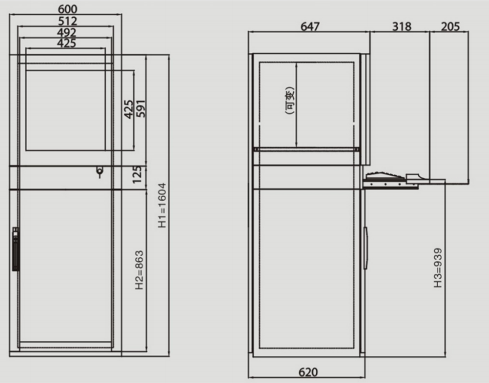

MXPCseries detail drawing:

View File

H1: Total height

H2: Height of front lower door

H3: Distance of keyboard drawer from the ground
